Fast, High-Quality Sheet Metal Fabrication Services

Norck: Your Partner for Precision Sheet Metal Fabrication

Norck delivers expert sheet metal fabrication solutions, empowering manufacturers across aerospace, automotive, industrial, architectural, and other sectors to transform flat stock into complex components, enclosures, and assemblies.

Capabilities for Sheet Metal Fabrication Excellence:

  • Integrated Cutting Technologies: Laser, plasma, waterjet, and shearing, enabling us to process diverse sheet metals with optimal edge quality and cost-effectiveness.
  • Precision Forming & Bending: Press brakes with advanced tooling to create intricate bends, complex forms, and accurate flanges.
  • Welding & Joining: TIG, MIG, spot welding, and other techniques to create robust assemblies and seamless joints.
  • In-House Finishing & Coating: Deburring, grinding, powder coating, painting, anodizing, and a range of finishes for aesthetics and corrosion protection.
  • Complete Assembly Solutions: Integration of hardware, electronics, and other components to deliver ready-to-use products or sub-assemblies.

Norck's Engineering Edge: It's About Performance, Not Just Parts

  • Design for Manufacturability (DFM): Early collaboration to ensure your designs are optimized for efficient fabrication, minimizing cost, and preventing reworks.
  • Material Expertise: Guidance on selecting the ideal sheet metal for strength, formability, weight, environmental resistance, and your application's unique needs.
  • Process Optimization & Tolerances: Tailored fabrication processes and rigorous quality control to achieve tight tolerances and ensure consistent outcomes.
  • Focus on Diverse Industries: Proven success in sectors ranging from architectural and industrial to demanding aerospace and automotive applications.

Why Choose Norck for Sheet Metal Fabrication?

  • Complex Geometries & Tight Tolerances: Delivering precision-fabricated components, enclosures, and assemblies for demanding applications.
  • Custom Solutions to Meet Your Needs: From simple brackets to intricate chassis or large-scale structures, tailored to your specifications.
  • Diverse Materials & Finishes: Working with steels, stainless steel, aluminum, and other metals, providing finishing options to achieve your desired look and environmental protection.
  • Streamlined Project Management: Offering a single-source solution from cutting and forming to final assembly, reducing your sourcing headaches.
  • End-to-End Fabrication Partner: We guide you from concept through delivery, ensuring the success of your sheet metal project.

What is sheet metal fabrication?

Sheet metal fabrication is a process that uses sheets of metal (Aluminum, galvanized steel, etc.) to produce metal components that are used as a standalone part or as a part in an assembly. The fabrication process usually includes blanking/punching, shearing, laser/plasma/waterjet cutting, bending, edge bending, forming, deep drawing, and squeezing.

On Demand Sheet Metal Fabrication, Sheet Metal Assembly and Custom Stamping.

Where is sheet metal used?

Sheet metal components are used in:

  •   Industrial equipments and machinery
  •   Aircrafts, automotive, railway vehicles, and excavators
  •   Miscellaneous consumer products such as appliances and consumer electronics
  •   Robotics
     Military equipments and weaponry systems

LEARN MORE ABOUT OUR CAPABILITIES

How is sheet metal fabricated?

Generally, sheet metal fabrication operations are performed as cold. Norck provides sheet metal cutting and forming services with the following processes such as:

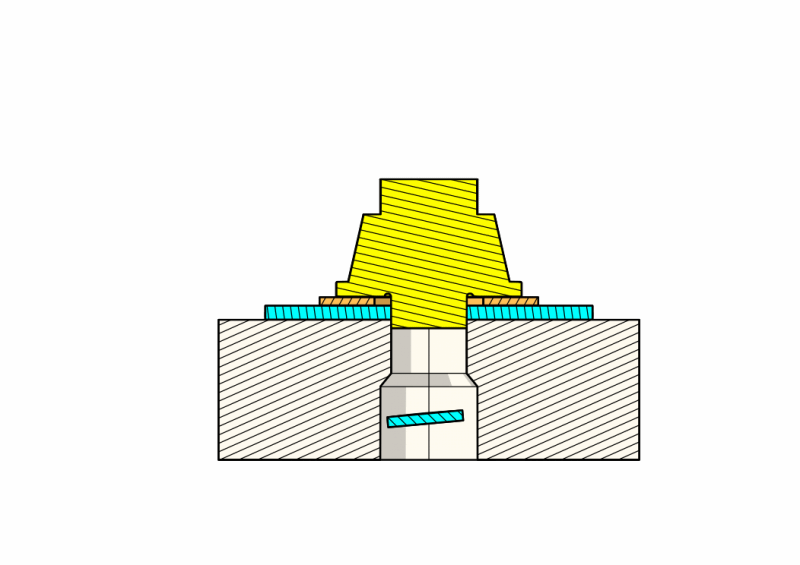

• Blanking / Punching

Blanking and punching is a process of cutting a workpiece from a sheet metal coil using a press (die). Norck processes sheet metal using punching or blanking methods. In any case, Norck uses BAUCOR branded tools which Norck itself manufactures.

The difference between blanking and punching is the desired result (workpiece/scrap).

• Shearing

Shearing is a process of slicing a sheet metal using a blade which is usually called shear blade. Shearing can be done manually or with a die, which will affect the cut's cost and accuracy. Norck is licensed to manufacture BAUCOR branded industrial blades which includes shear blades. You can check BAUCOR's website here.

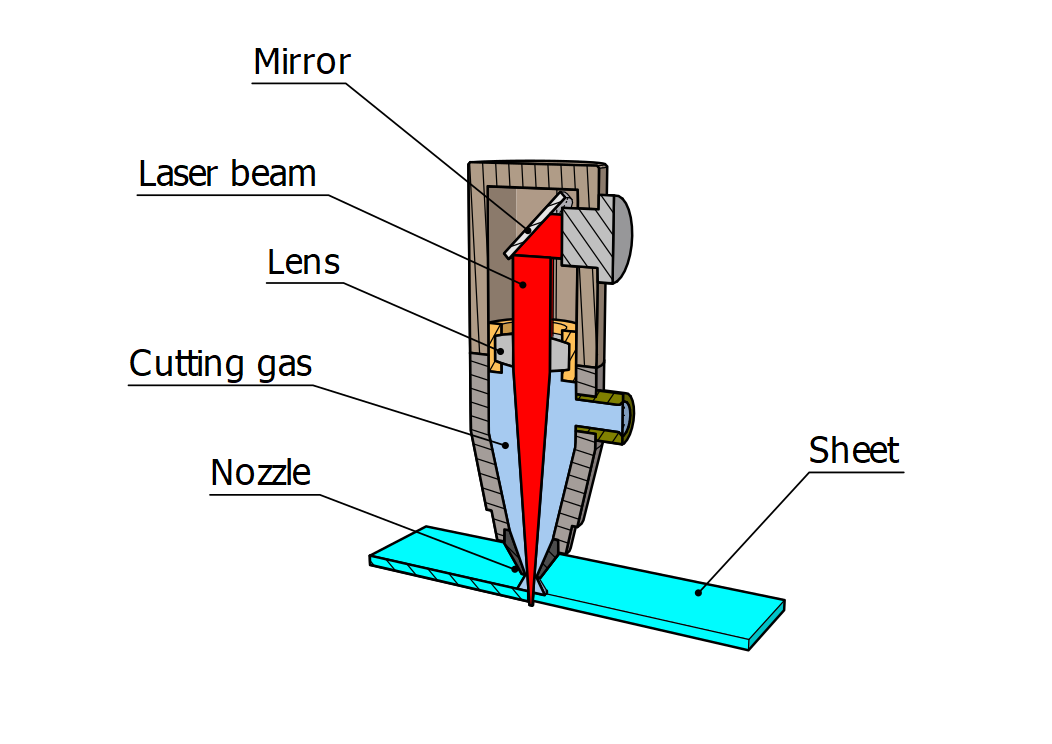

• Laser cutting

Laser cutting is a thermal cutting method that is used to obtain custom flat sheet metal shapes. Accuracy is around ±0.0005inches (±0.01mm) for laser and ±0.0010inches (±0.03mm) for waterjet.

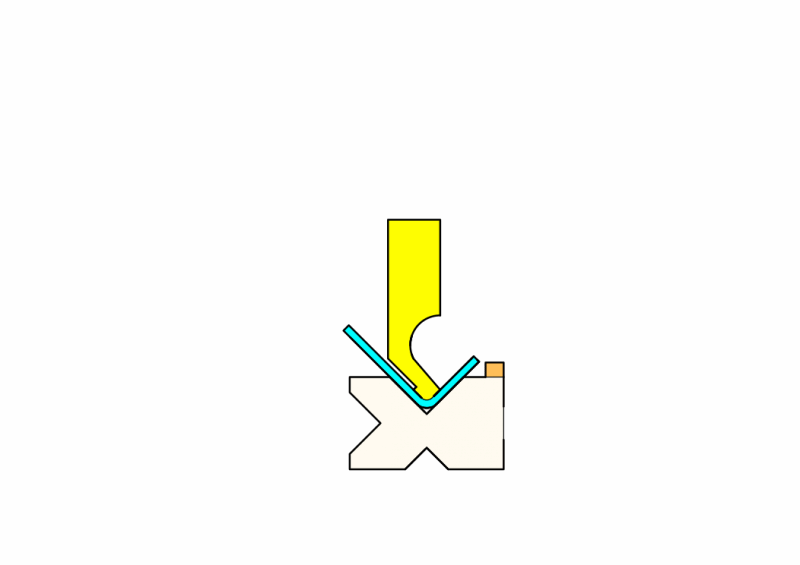

• Bending

is transforming a flat metal sheet into a V or U-shaped part using a press. These presses can be of various sizes. Norck can bend sheet metal up to 5000 mm depending on the complexity of the shape.

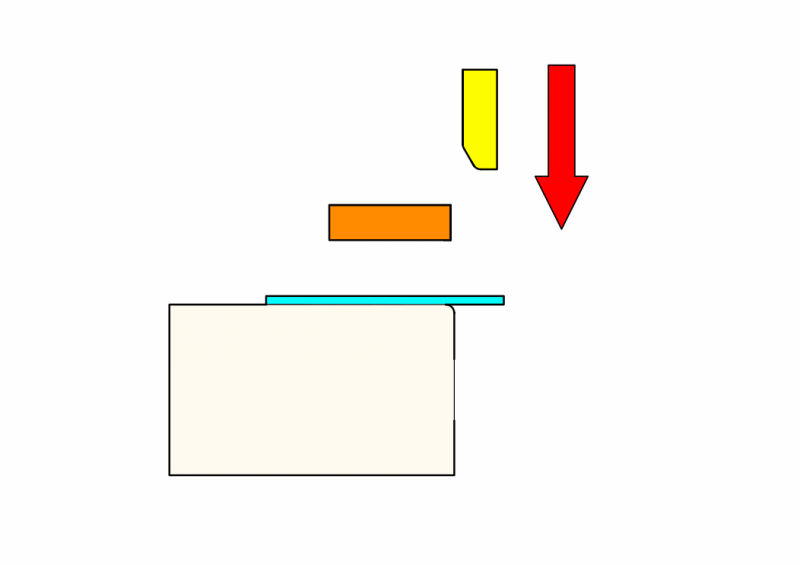

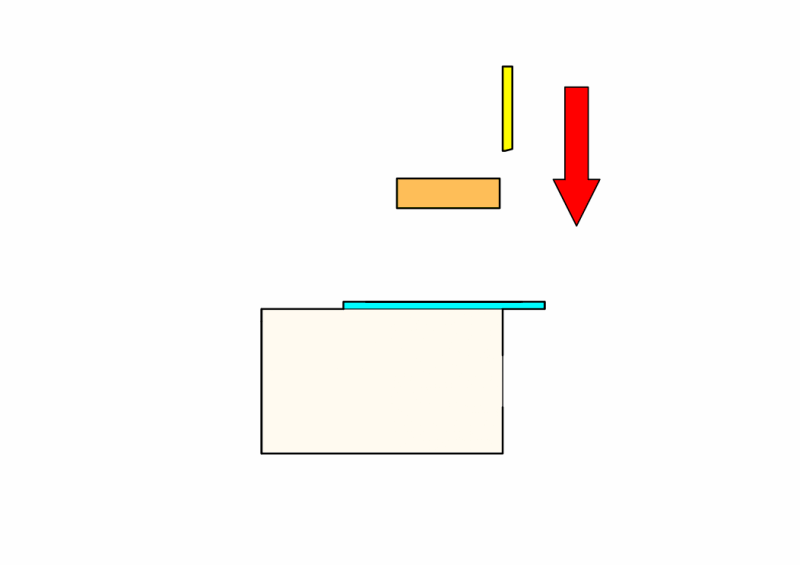

•  Edge bending

Edge bending is transforming an edge of sheet metal into an angle. Sheet metal is fixed between two die parts, and the free edge is punched to form the desired shape.

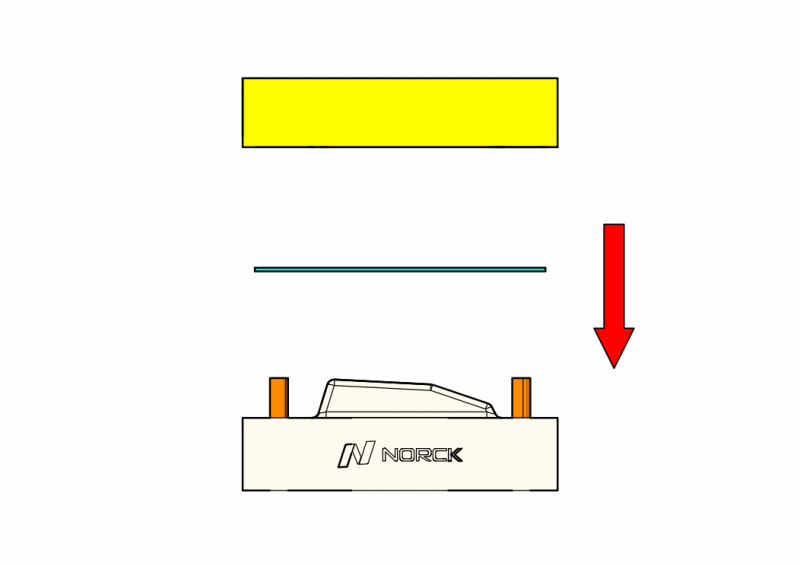

•  Forming

Forming / Stamping comprises multiple operations such as blanking, punching, and bending to form a simple or complex shape of sheet metal components. The sheet metal is transformed between a punch and a DIE with male and female shapes of the final workpiece.

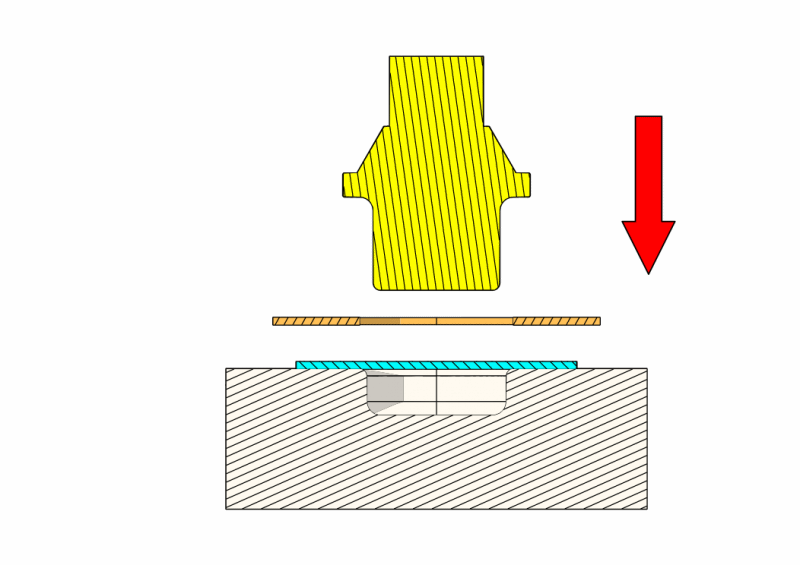

•  Deep drawing

In deep drawing, a blank is held between a die and a blank holder, and then it is formed using a punch. The shapes obtained are generally curved parts.

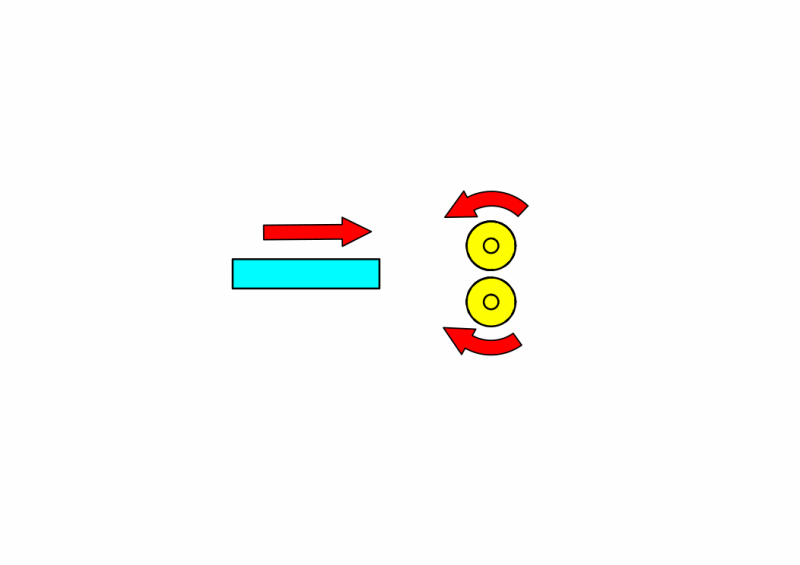

•  Squeezing

Squeezing is altering the thickness of sheet metal through two cylinders

Norck: Your Data-Driven Partner for On-Demand Manufacturing Excellence

Norck is a technology-powered manufacturing leader specializing in CNC machining, 3D printing, sheet metal fabrication, and injection molding. Our intelligent, data-driven approach ensures exceptional quality, optimized costs, and seamless supply chain management for companies worldwide.

Key Services:

Why Choose Norck?

  • AI-Powered Manufacturing: Data and AI optimize our processes for superior quality, minimized costs, and supply chain visibility
  • Vast Production Capacity: Our extensive partner network in Europe and the US guarantees both low and high-volume production.
  • End-to-End Expertise: Our team of engineers, data scientists, and product developers ensure design for manufacturability and unparalleled service
  • Single-Source Solution: Norck streamlines your supply chain, reduces overhead, enhances purchasing power, and delivers just-in-time results.

Experience the Norck difference. Get a quote fast for your manufacturing needs today!
