HP Multi Jet Fusion

Norck, a leading digital manufacturing company, provides extremely reliable, top quality, and fast 3D printing services such as HP Multi Jet Fusion for a wide range of industries including aerospace, defense, robotics,  industrial, automotive, electronics, energy, hardware, and consumer products. Our team of highly qualified engineers and cutting-edge facilities will provide you with quality products with the quickest turnaround time at a competitive price. Whether you have high volume production projects or rapid prototyping needs, Norck can manage it with the results better than expectations.

Click here to get a quote for your next 3D printing and HP Multi Jet Fusion projects.

Let’s now give you some insight how Norck achieves 3D printing and HP Multi Jet Fusion .

What is HP Multi Jet Fusion?

HP Multi Jet Fusion is an additive manufacturing process invented by Hewlett-Packard. In which particles from a bed of plastic powder are fused to produce parts and assemblies. It helps turn designs into scaled prototypes as close to the designed model. It is mainly used in the earliest stages of product development and can be used in conceptual models, functional prototypes, tooling, electronics, and medical industries.

3D printing requires 3D CAD models to print a part or assembly. The 3D models can be made using parametric CAD software such as Solid works and CATIA V5, or Subdivision modeling software such as 3DS and Blender.

Advanced 3D Printing and Additive Manufacturing

What are the advantages & disadvantages of using MJF?

HP MJF is used over other 3D printing processes due to:
   -    cost-effective
   -    fast process
   -    Models don’t need support structures
   -    Minimum feature size 0.02” (0.5mm)
   -    Material is isotropic (97%)
   -    Reusable filament

Although there are disadvantages to using HP MJF:
   -    Printers and materials are proprietary to HP
   -    Limited materials selection
   -    Limited colors
   -    Post-Processing required

How is it fabricated?

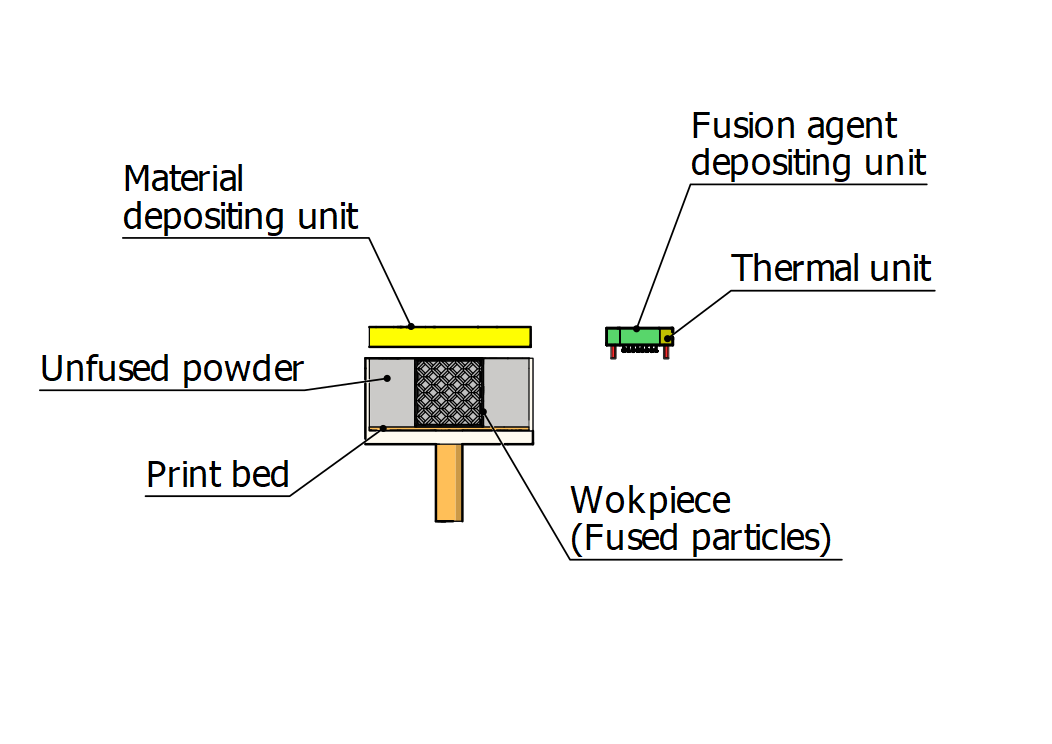

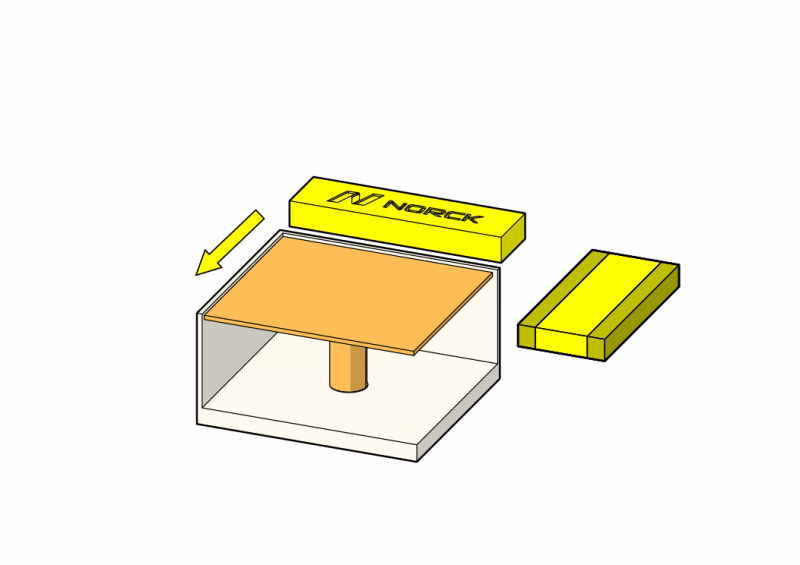

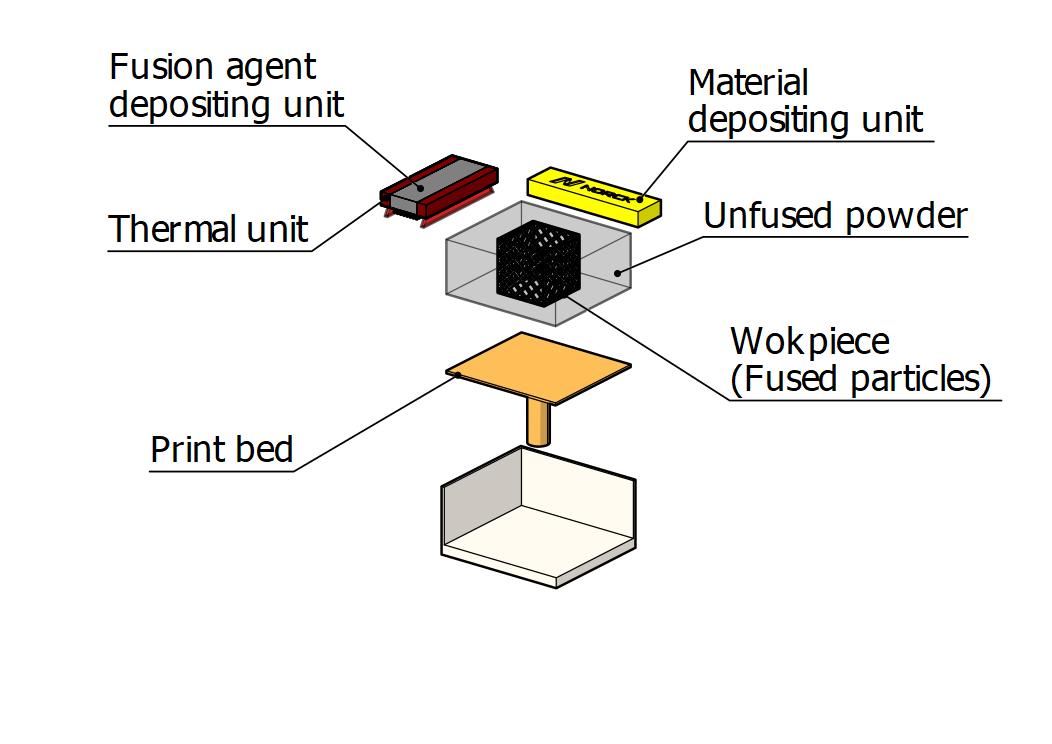

In HP multi-fusion jet, the 3D printer slices the 3D model into several cross sections and prints them layer by layer. Each layer of powder material is deposited upon a print bed by a material depositing unit. Then a thermal unit moves across the print bed to deposit a fusing agent and detailing agent. The fusing agent is deposited where powder particles should fuse, and the detailing agent is applied to the contour to help cool the part. The thermal units also contain infrared light to merge the particles and form the desired shape.
Once the 3D printed model is finished, it should cool down before being removed from the platform. Post-processing might be required to remove any excess material and burrs or to smoothen surfaces.

HP Multijet Fusion Printing

- Most used materials:
   •    PA 11
   •    PA 12
   •    PA 12 40% GF
   •    PP

Parts and assemblies should follow specific design rules to be printed correctly. Norck offers engineering services that will help you confirm your design for 3D printing.
